CLIENT: Anthony Wayne Local Schools
STAKEHOLDERS: CONTRACTOR: Laibe Electric/Technology
VENUE (Name, City/State): Anthony Wayne High School Auditorium, Whitehouse, OH
YEAR: 2025

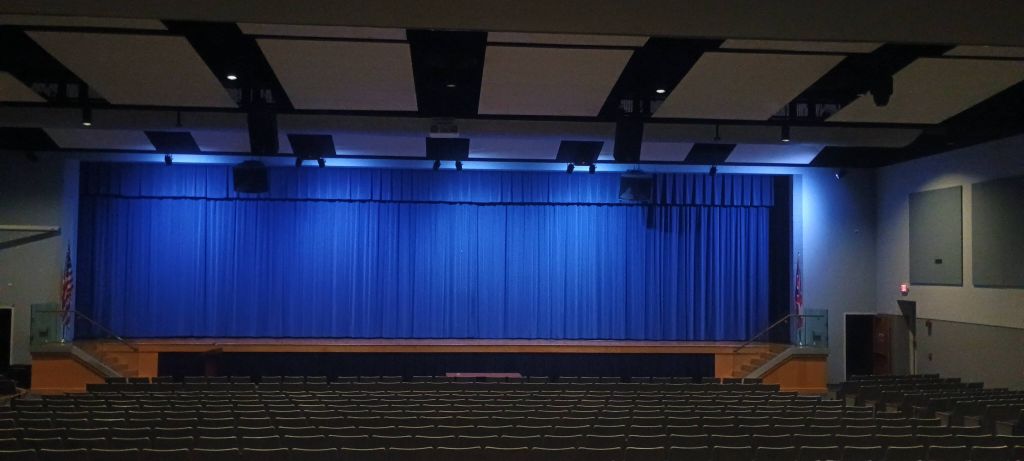

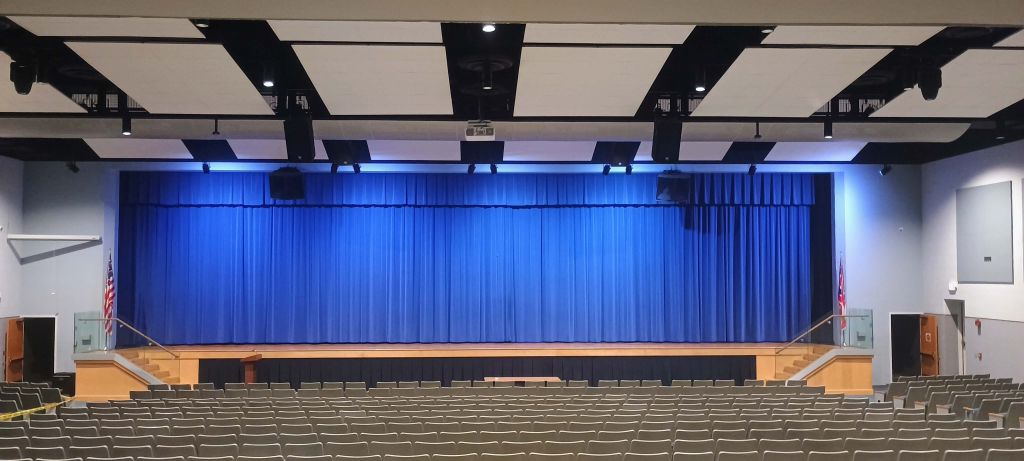

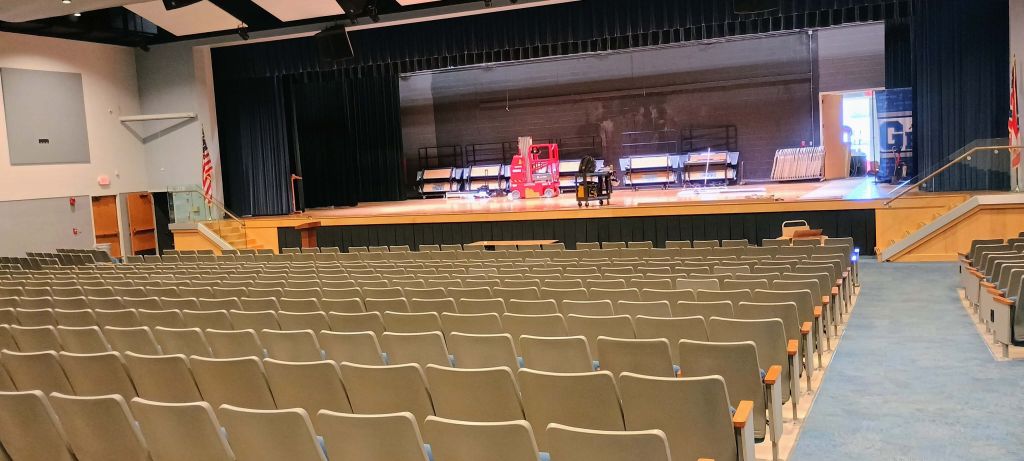

Modernizing a High School Auditorium Lighting System
Scenic Solutions partnered with Anthony Wayne Local Schools to modernize the lighting systems within the Anthony Wayne High School Auditorium in Whitehouse, Ohio.
The project included replacing the existing stage lighting and house lighting systems with modern LED fixtures, updated lighting controls, and a new architectural lighting control system designed to improve performance, efficiency, and operational flexibility.
Complete Stage and House Lighting System Upgrades
Stage Lighting Modernization

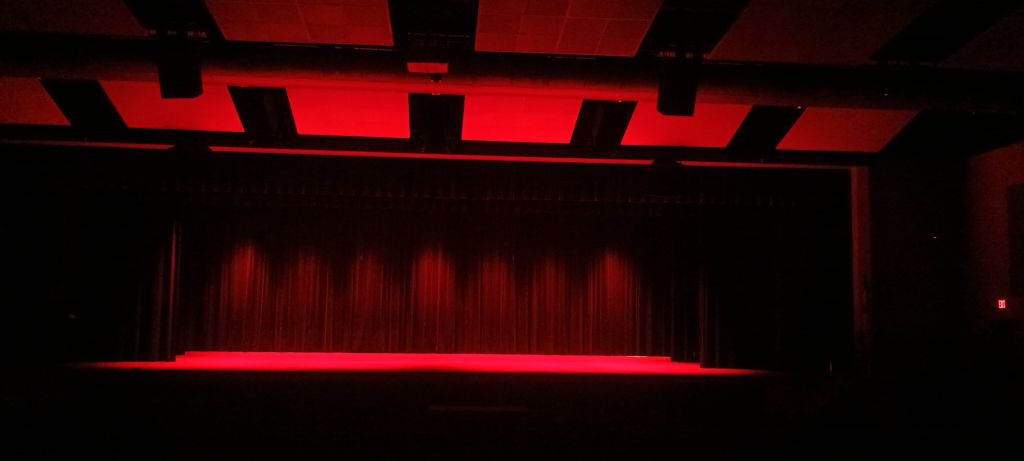

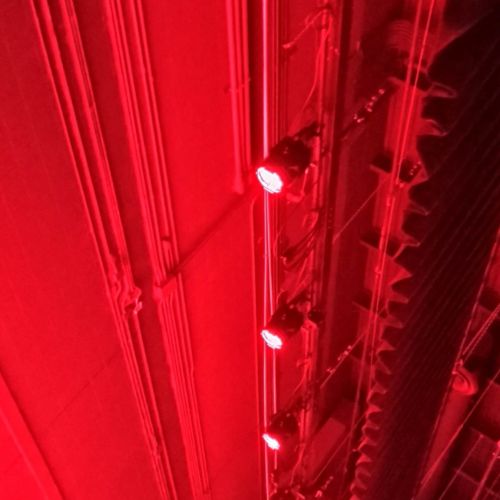

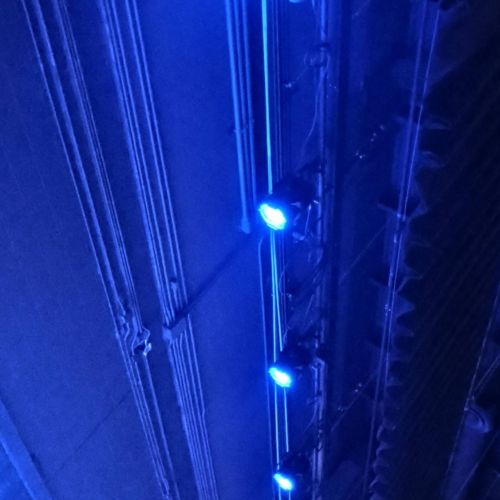

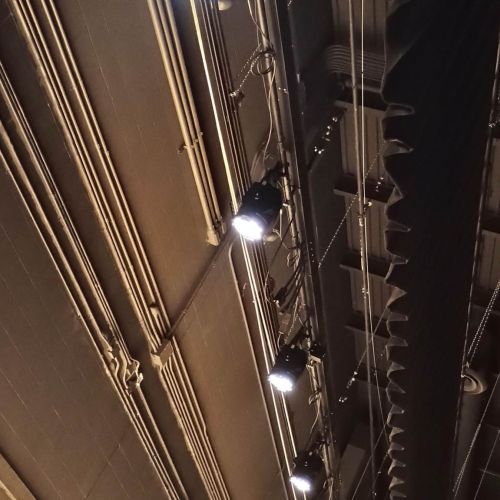

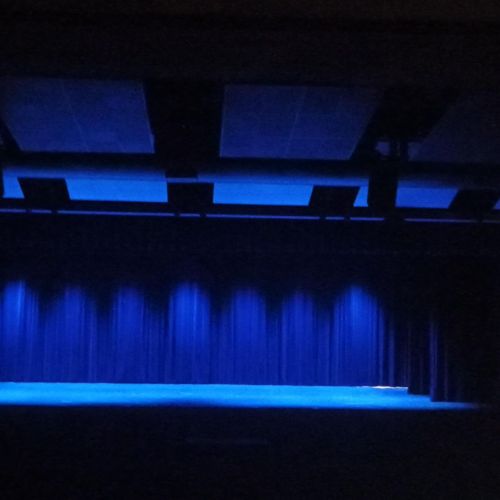

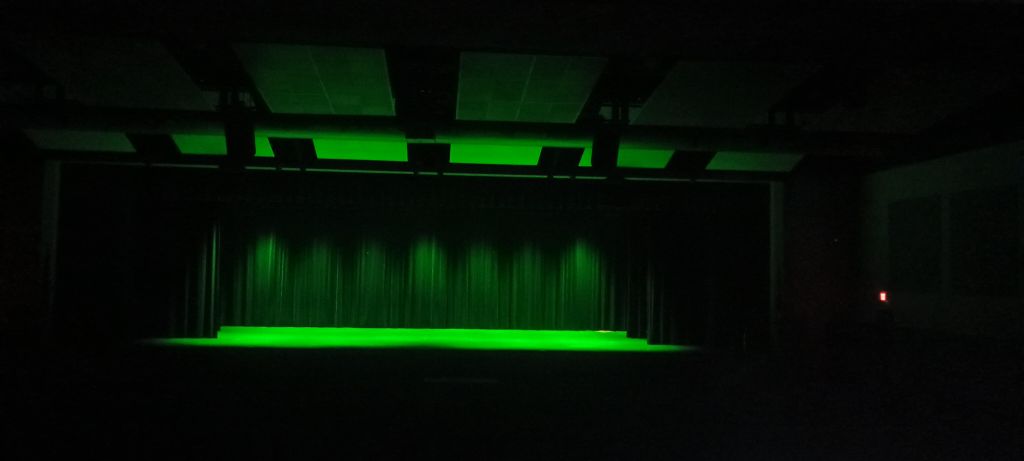

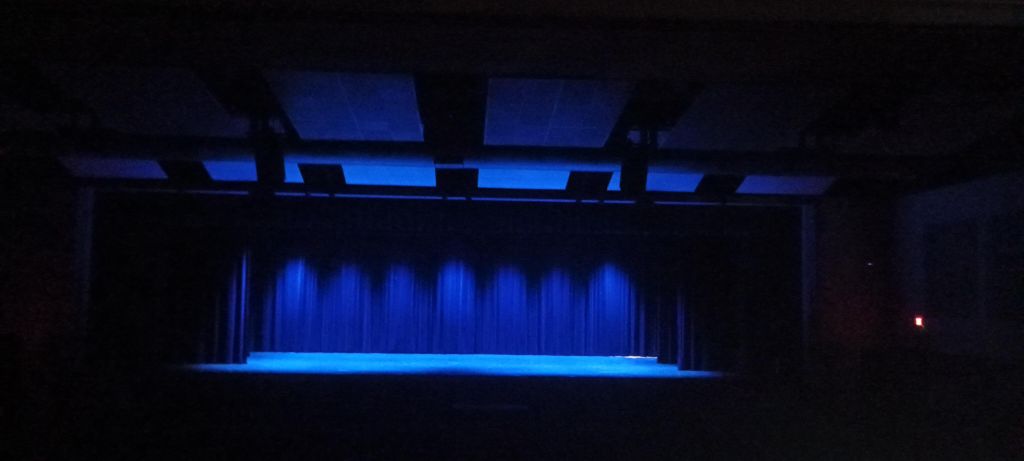

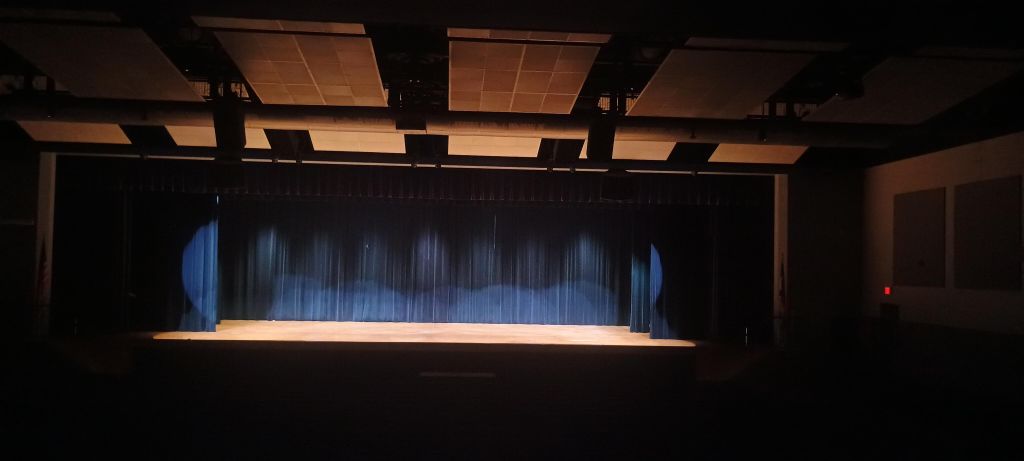

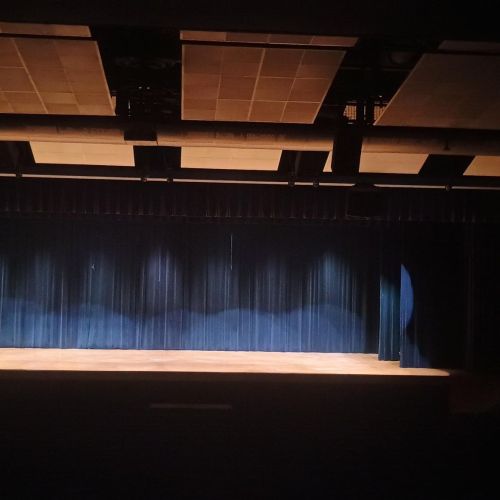

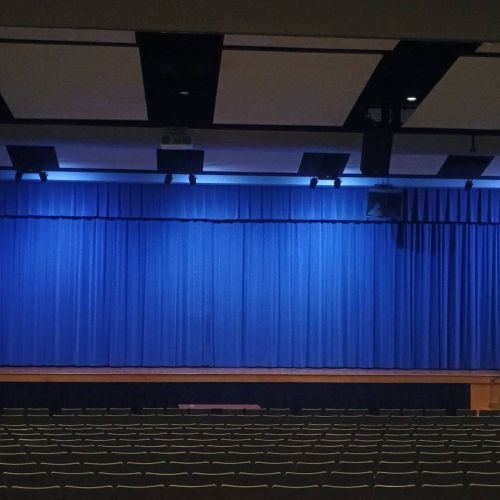

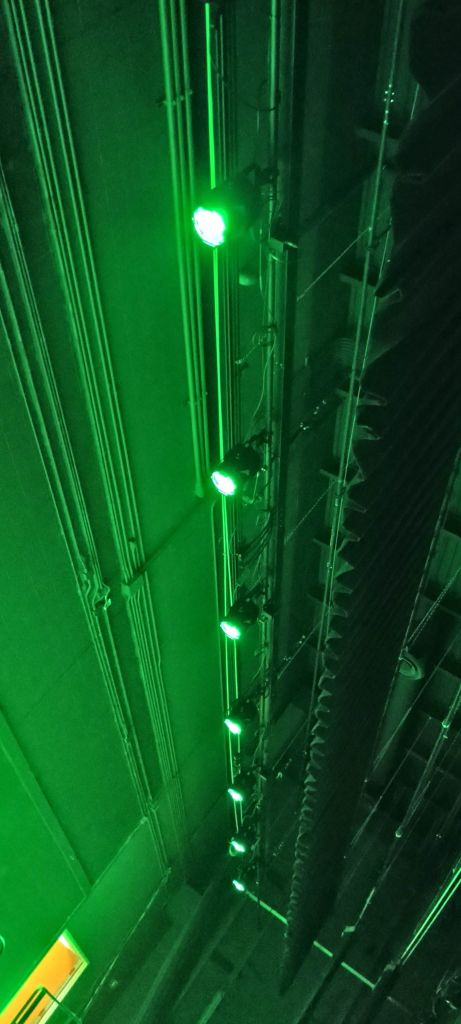

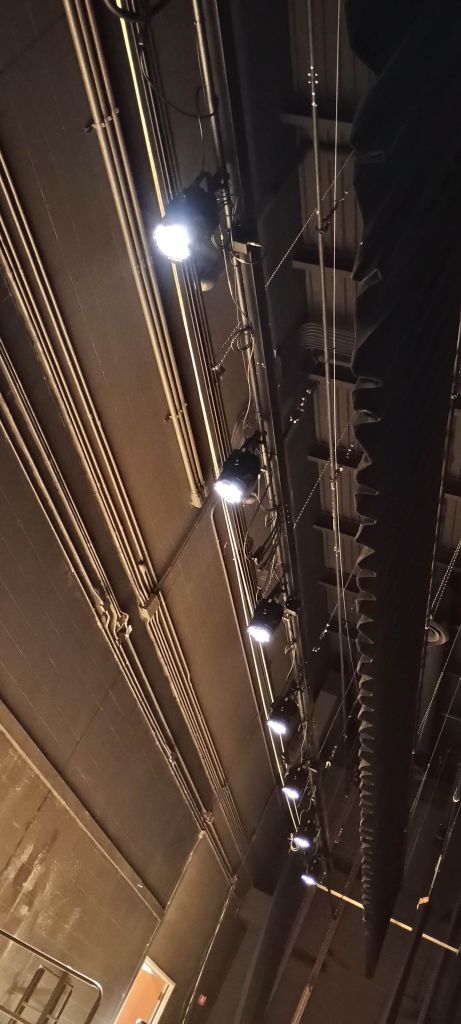

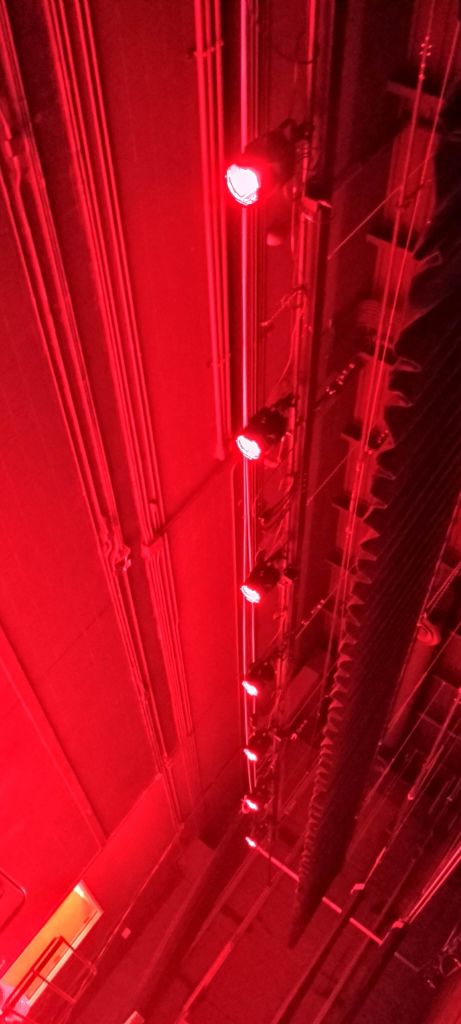

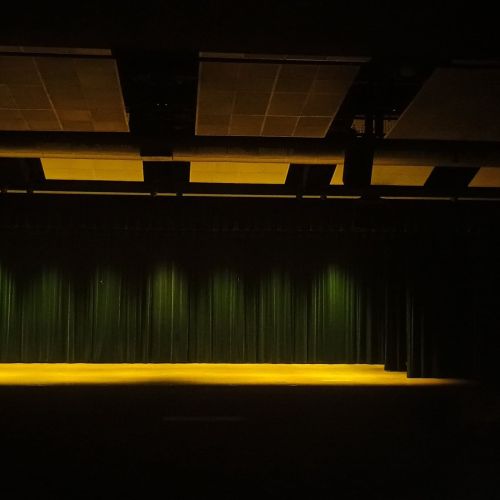

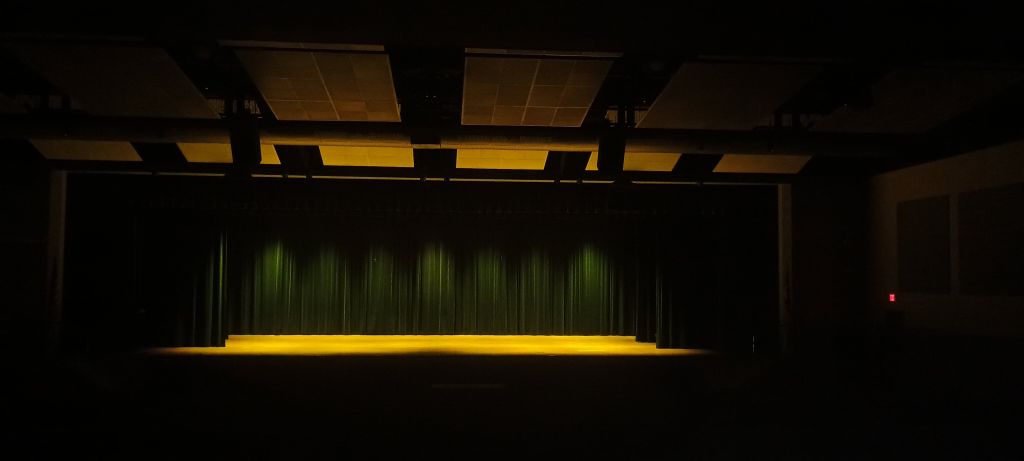

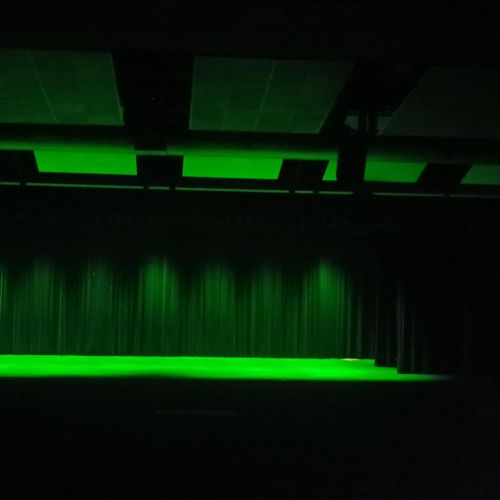

The existing stage lighting system was removed and replaced with a modern LED-based theatrical lighting system that provides improved versatility while reducing energy consumption and maintenance requirements.

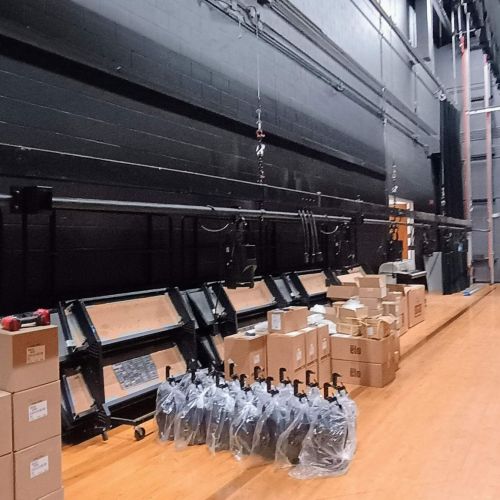

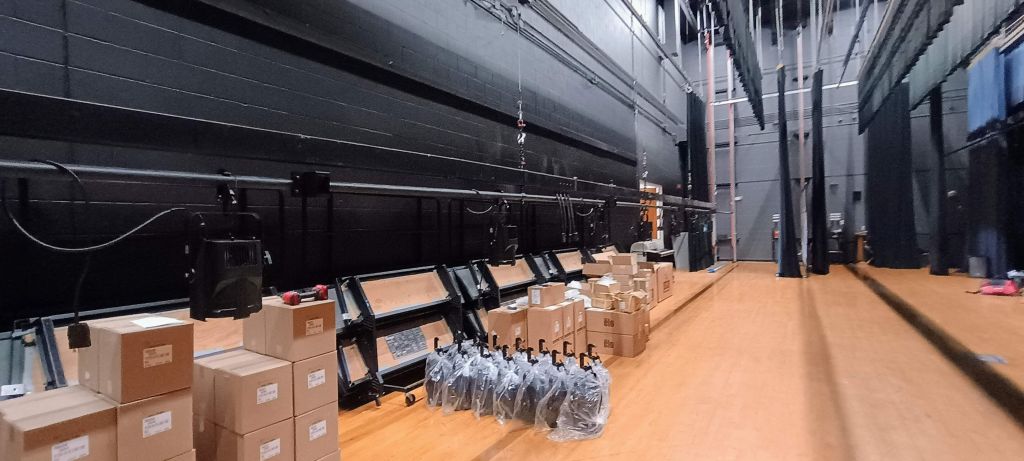

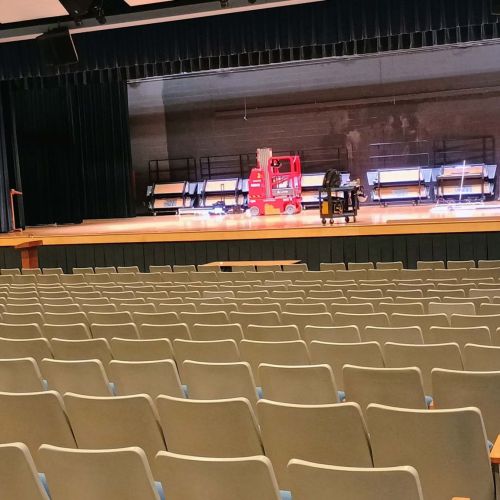

- Removed the original stage lighting fixtures, controls, and dimming equipment.

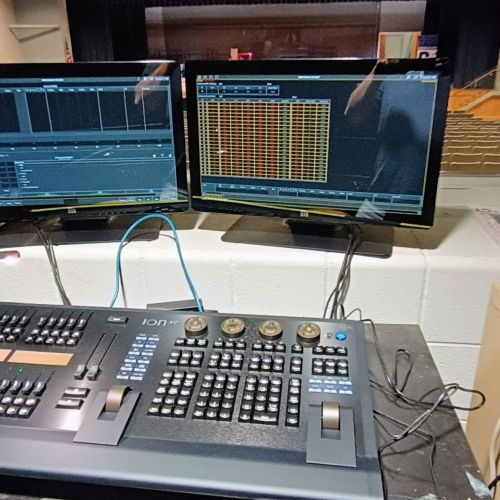

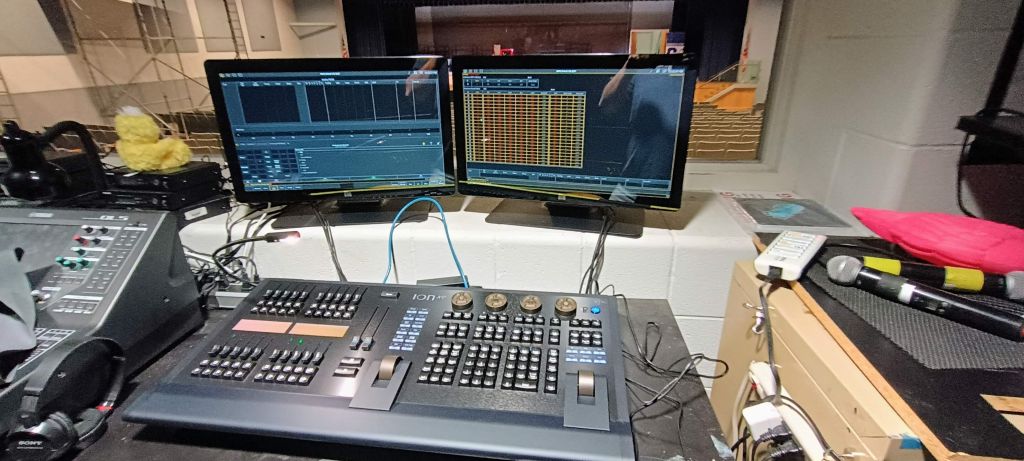

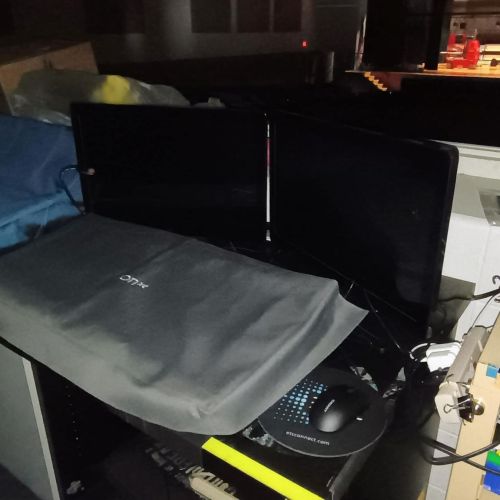

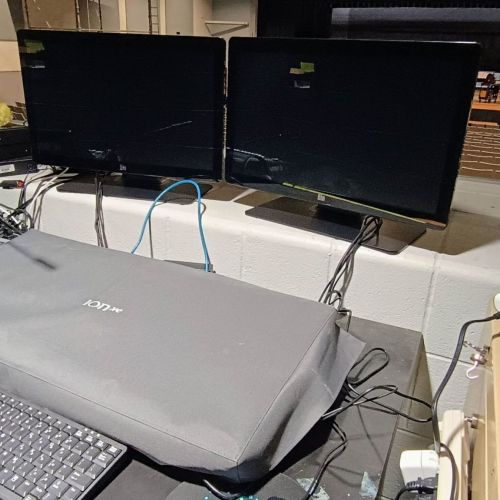

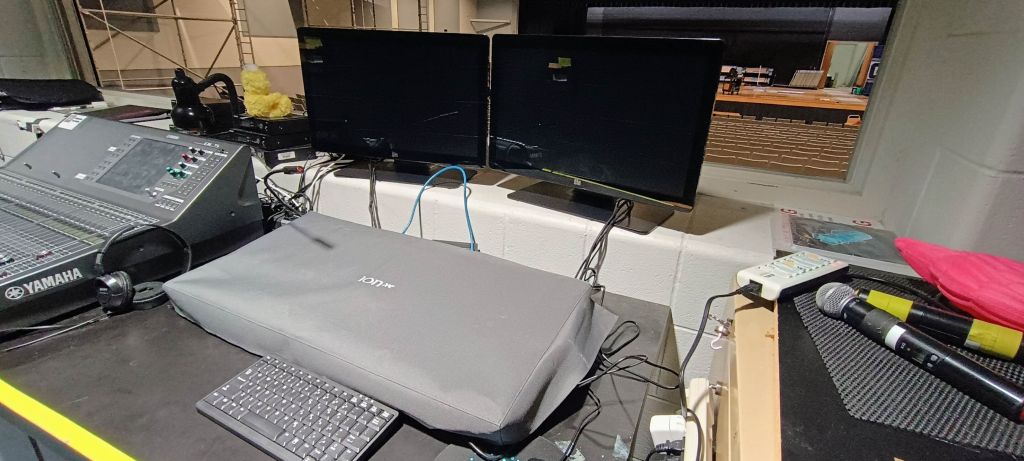

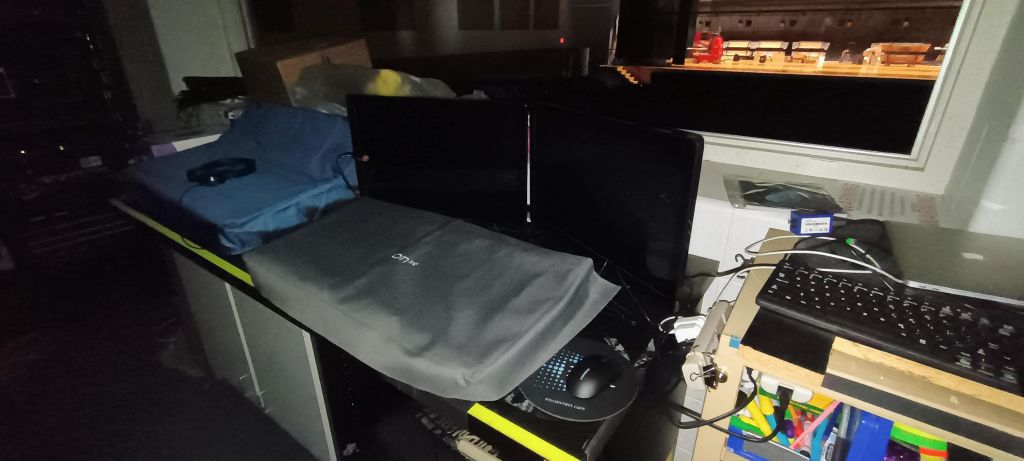

- Installed one ETC Ion Xe 20 lighting console.

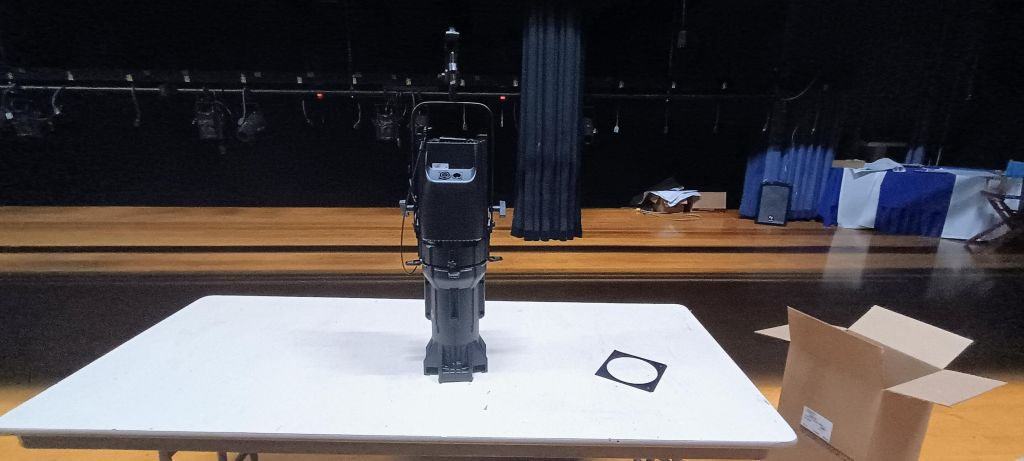

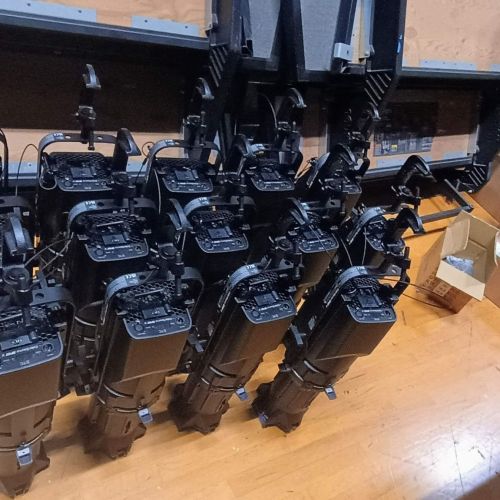

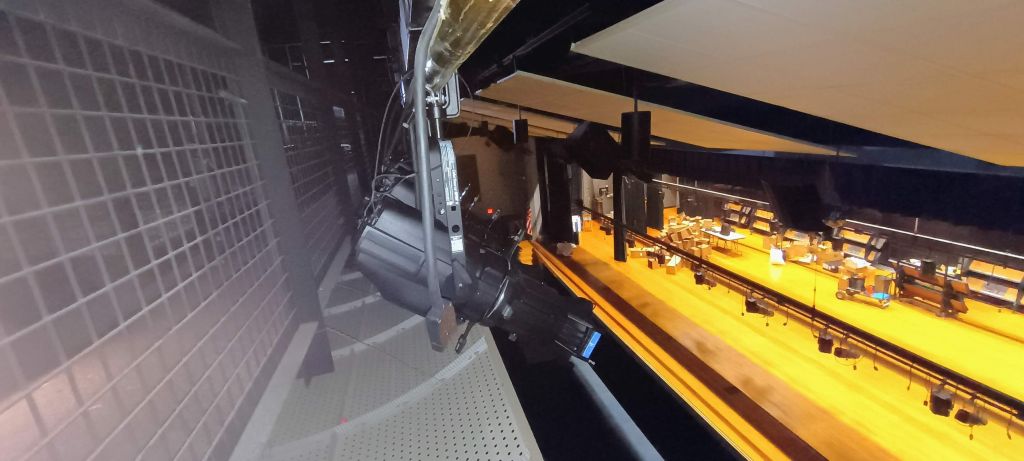

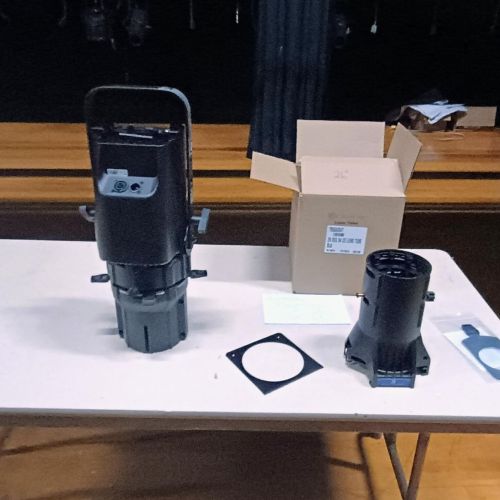

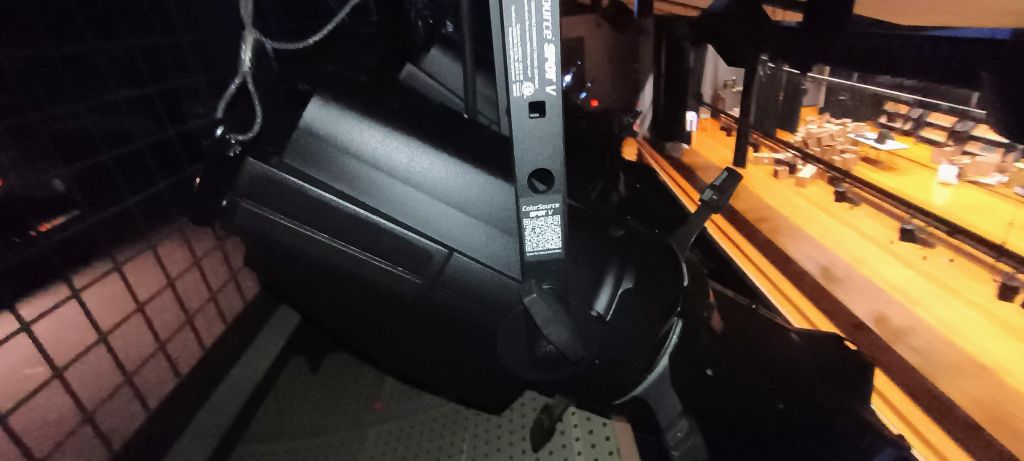

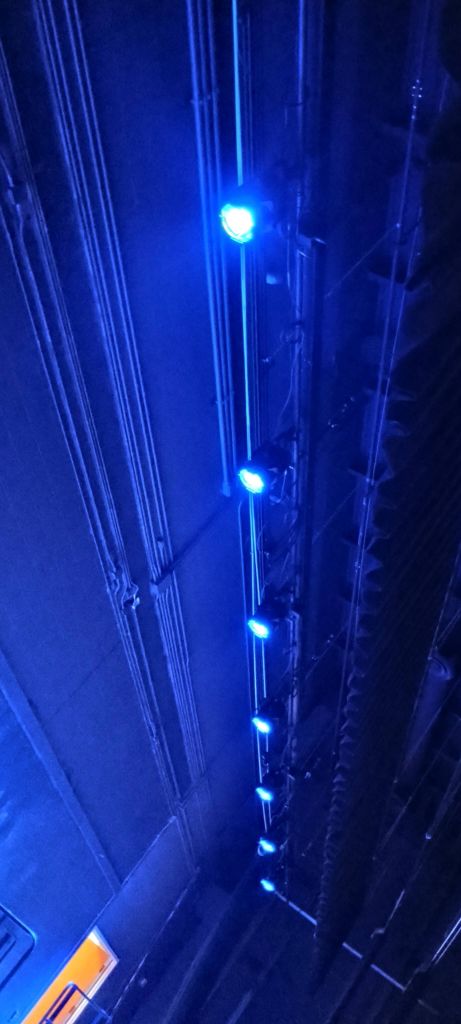

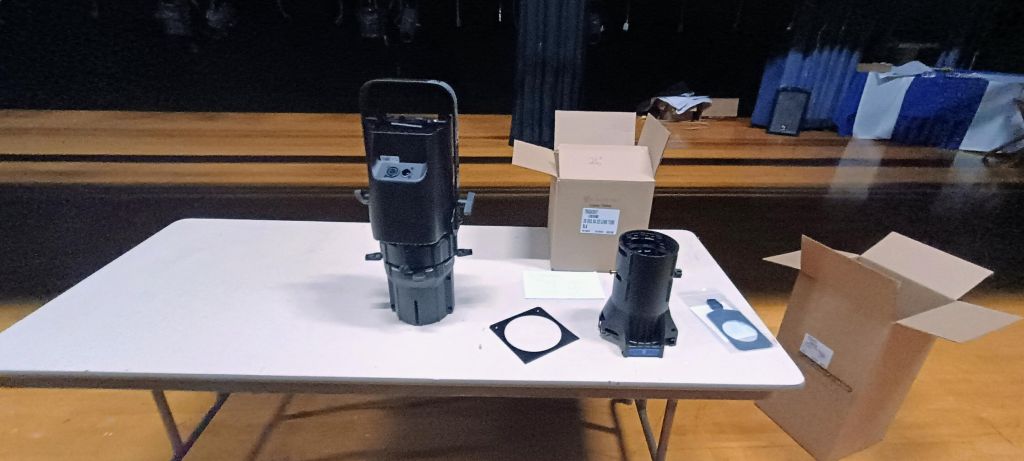

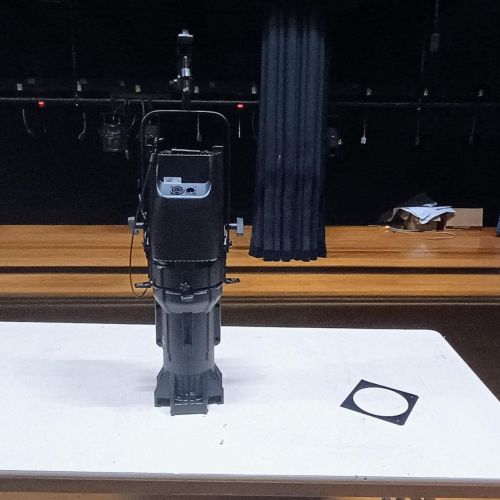

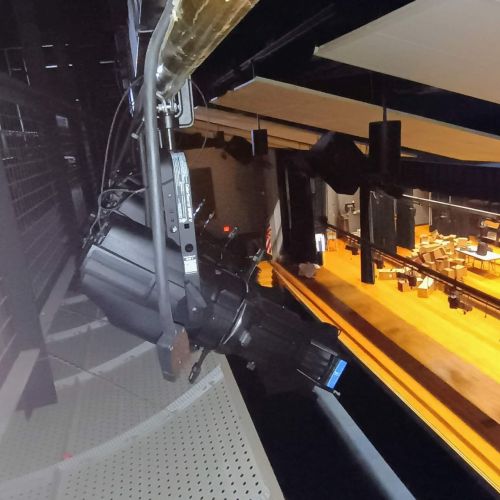

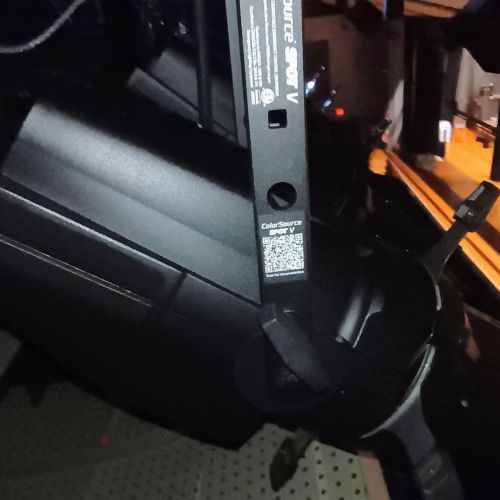

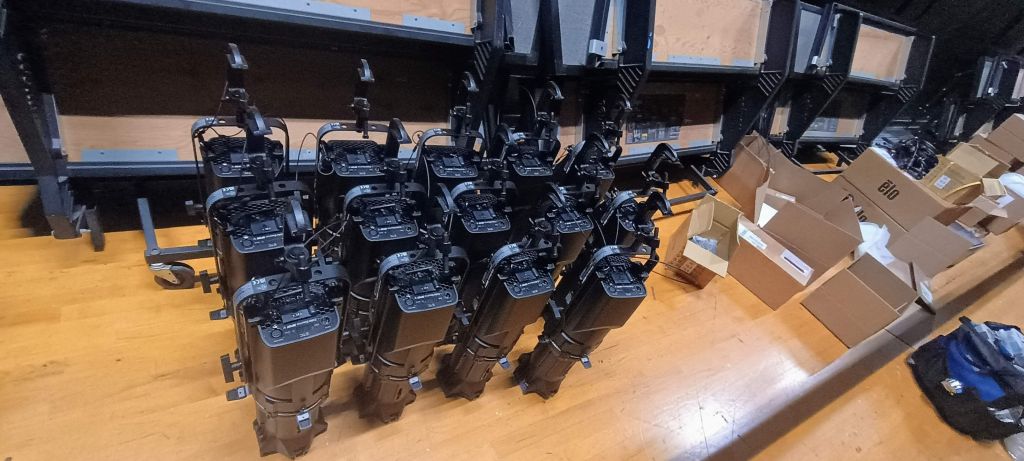

- Installed 28 ETC ColorSource Spot V fixtures.

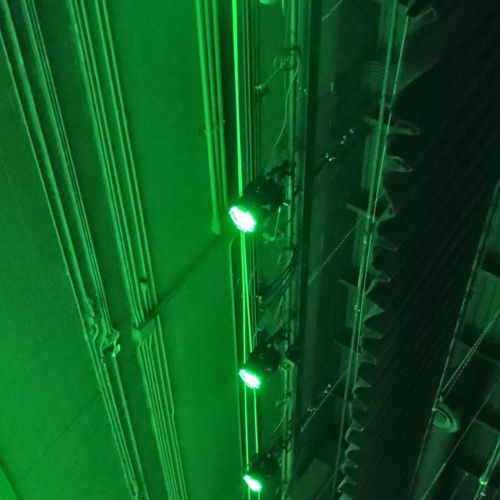

- Installed 10 ETC ColorSource PAR Jr fixtures.
- Installed 7 ETC ColorSource Spot Jr fixtures.
- Installed 21 ETC ColorSource Fresnel V fixtures.

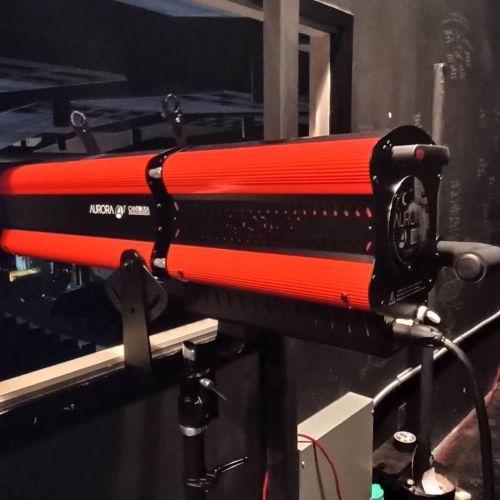

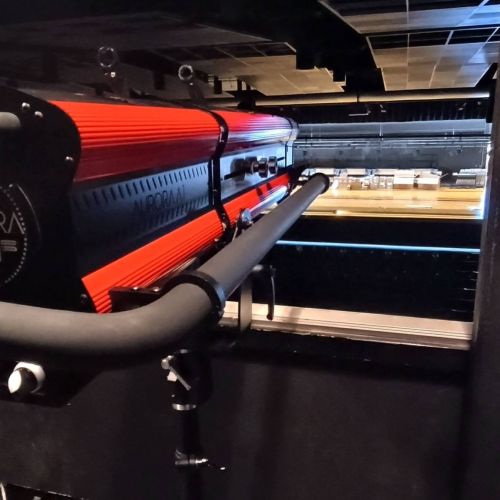

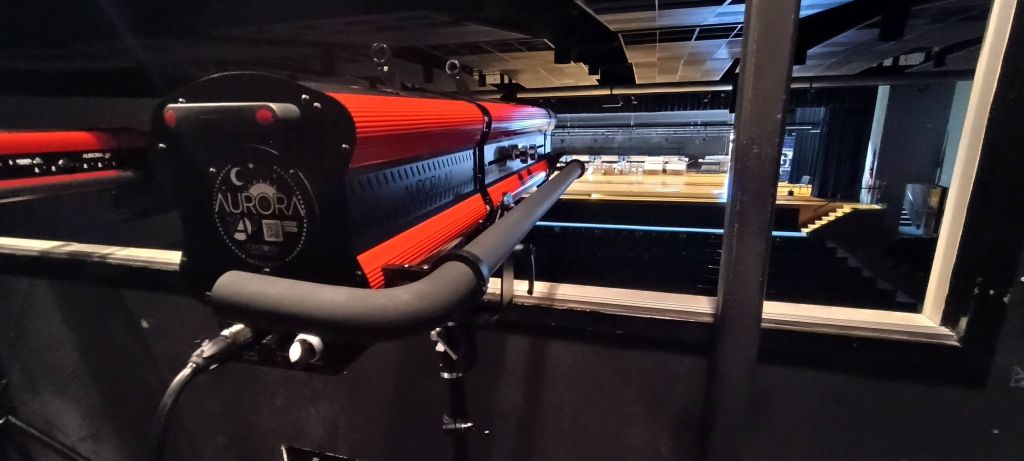

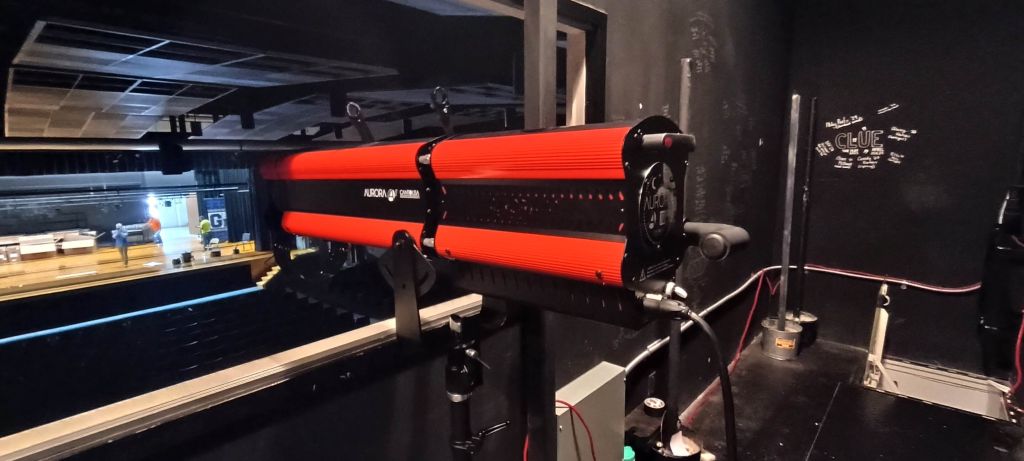

- Added 2 Canto Aurora Followspots.
- Added 2 ETC High End Lonestar fixtures to expand stage lighting capabilities.
Architectural House Lighting Controls
The house lighting system received a complete control upgrade centered around the ETC Paradigm Architectural Control System.
- Installed one ETC Paradigm Architectural Control Processor.
- Installed one ETC Paradigm Station Power Module.

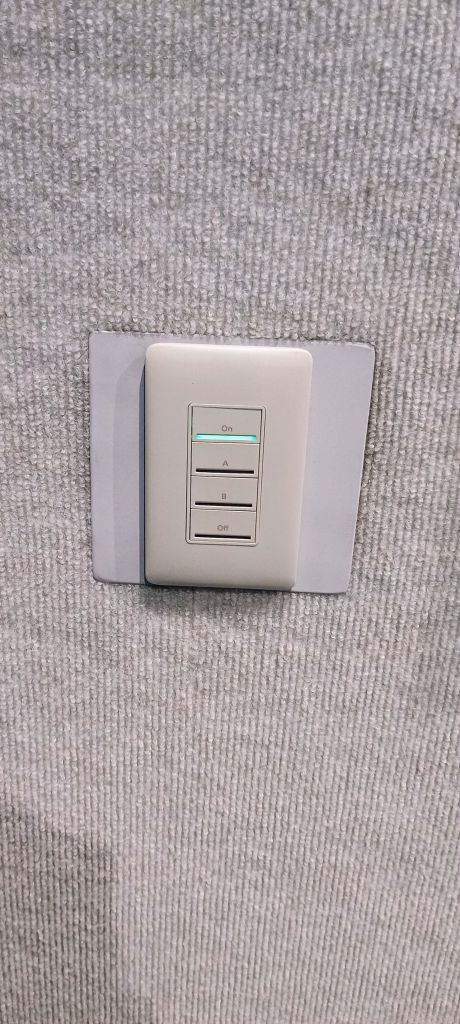

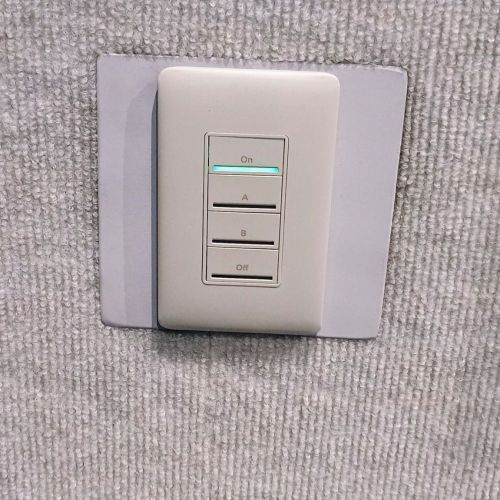

- Installed six ETC Paradigm Inspire Button Stations.

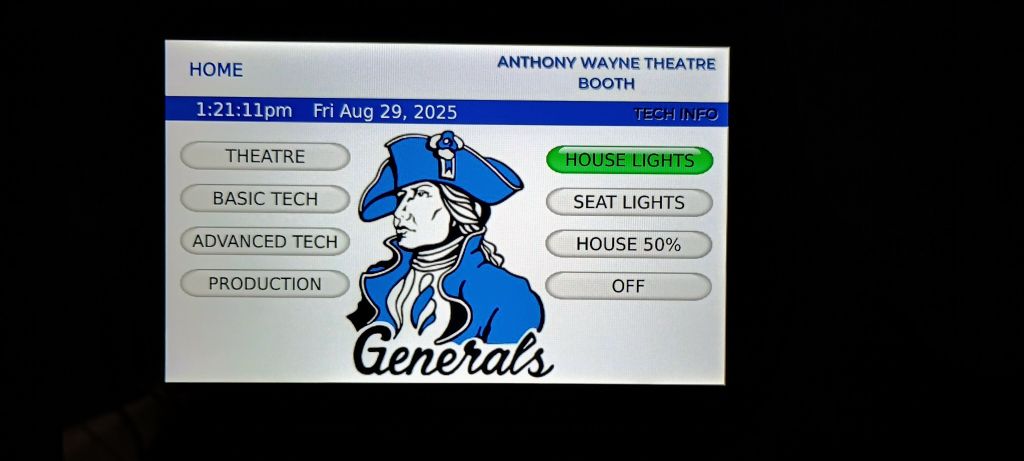

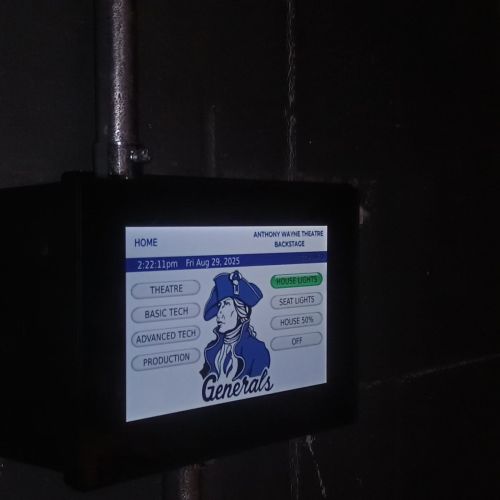

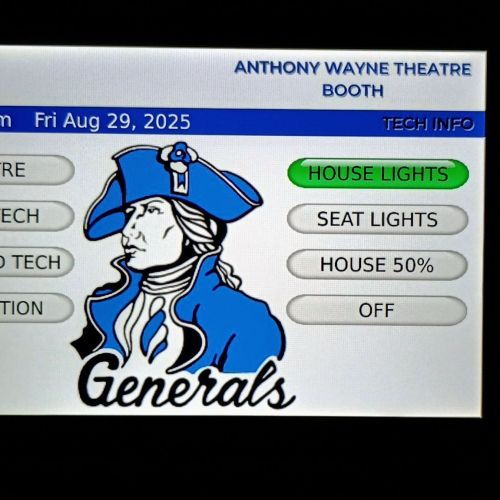

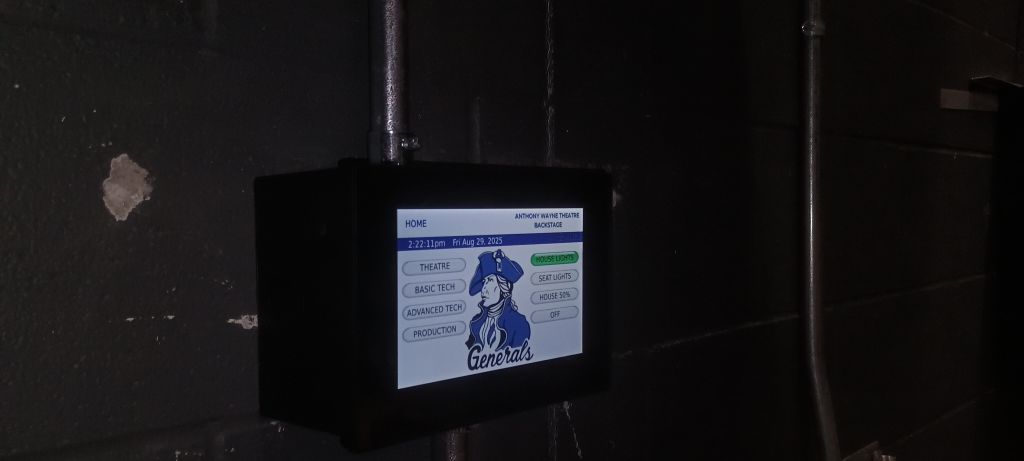

- Installed two 7-inch ETC Paradigm wall-mounted touchscreens to provide improved control from multiple locations throughout the auditorium.
Improving Performance, Efficiency, and Safety
Transition to Modern LED Technology
The project replaced incandescent stage lighting fixtures with modern LED fixtures, providing several operational advantages.
- Reduced energy consumption.
- Longer fixture life.
- Lower heat output than traditional incandescent lighting.

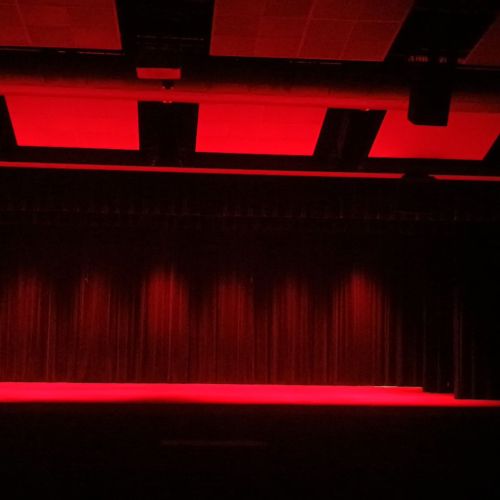

- Improved lighting versatility for a variety of productions and events.
Enhanced Auditorium Operation
Upgrading the house lighting controls improved day-to-day operation of the auditorium while increasing flexibility for staff and facility users.
- Multiple control locations replaced the previous single access point.
- Improved control of house lighting contributes to safer operation for auditorium occupants.
- Local theater groups and members of the surrounding community also benefit from expanded lighting capabilities and improved system controls.
Supporting School and Community Performances

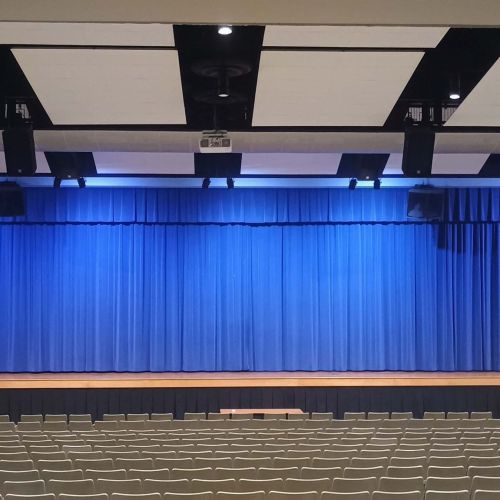

The completed lighting upgrade provides Anthony Wayne High School with a modern theatrical lighting system capable of supporting educational productions, school events, and community performances.
By combining LED stage lighting with advanced architectural lighting controls, Scenic Solutions delivered an efficient, flexible solution designed to meet the auditorium’s current and future performance needs.
Scenic Solutions: Auditorium Lighting System Specialists
Scenic Solutions designs and installs modern lighting systems for schools, theaters, and performance venues. This project demonstrates our ability to replace aging theatrical lighting infrastructure with integrated LED fixtures, advanced control systems, and architectural lighting solutions that improve performance, energy efficiency, and long-term usability.
